TrendWorX64 Viewer Configurator
The

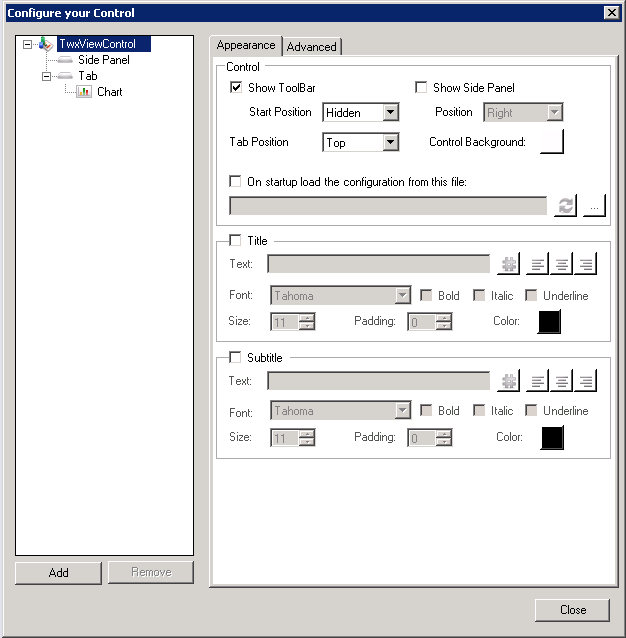

TrendWorX64 Viewer Configurator has a navigation tree that displays the components of the viewer. You work in the tree to configure the optional side panel, add tabs, add charts to tabs and/or the side panel, add plots to the charts, and add pens to the plots. The configurator also has a section where tabs appear. The tabs that appear depend on the component that is selected in the tree view.
The tabs that appear in the configurator are listed below. For more about a tab, click the tab's hyperlink below.
-
Viewer tabs: Appearance and Advanced
-
Side Panel tabs: There are no tabs for the side panel. For tips on designing the side panel, refer to Side Panels for Trends.
-
Tab tabs: Appearance and Advanced
-
Chart tabs: Chart, Data, X Axis, Y Axis, Summary, and Legend (each described in Chart Options for Trends), and Advanced
-
Pen tabs: General, Ranges, Alarm, Ideal Pen (each described in Pen Options for Trends), and Advanced
