MELFA System Configuration
The system configuration when using MELFA is shown for each communication protocol. For details on the cables used, refer to the manuals for each Mitsubishi Electric product.

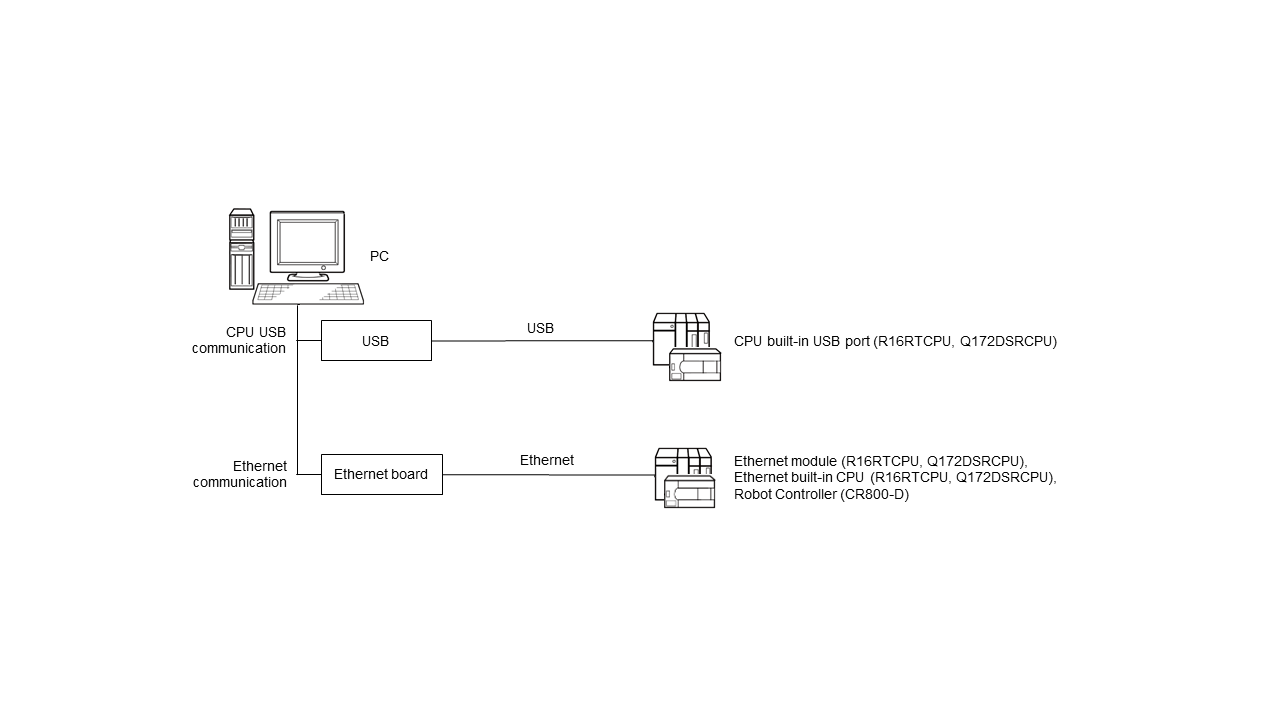

System Configuration
System Configuration Details
|
Communication Method with a Personal Computer |
Connection Method |
Connected Device |
|---|---|---|
|
CPU USB communication |
USB |
CPU built-in USB port (R16RTCPU, Q172DSRCPU) |
|
Ethernet communication |
Ethernet board |
Ethernet module (R16RTCPU, Q172DSRCPU) |
|
Ethernet built-in CPU (R16RTCPU, Q172DSRCPU) |
||
|
Robot Controller (CR800-D) |
