2D Color Dynamic Properties

The Color dynamic is useful with state indicators and is often used in symbols, pictographs, and sometimes for animation effects in a 2D GraphWorX64 display. You can add a Color dynamic to a 2D display by clicking the ClosedColor dynamics buttonOn the Dynamics tab:
On the Dynamics ribbon:
, located in the ClosedColor section  of the 2D Dynamics ribbon. You can specify a number of properties that affect color changes: start and stop colors, effects for color transitions, intervals, delays, and durations, fill behavior, flashing, auto reverse and many more. (Properties for the 3D version of the Color dynamic are slightly different; refer to 3D Color Dynamics Properties for more information.)

The table below lists the 2D Color dynamic properties. Not all properties are described in this table. Common properties such as Name, Description, Tooltips and other features that appear for common objects have been omitted. The properties listed in the table are those you would set as part of your Color dynamic definition. You determine the default values for the Color dynamic's properties by setting them on the Preferences tab; for more information, refer to New Color Default Settings.

Unique Properties of the Color Dynamic

Property Settings Description
Data Section

DataSource

An input, value, expression, or OPC data source

Data connections can be typed directly into the DataSource. Click the Ellipsis button and in Data Browser you can select tags in the system. You can also create Expressions in the Data Browser.

DragDropDataSource

True or False

True indicates that the data source can, during runtime, be dragged by a user and dropped into another component so that the color dynamic affects the component it is dropped into.

Low Limit

Value

Low limit is used as a boundary condition in animation.

HighLimit

Value

High limit is used as a boundary condition in animation.

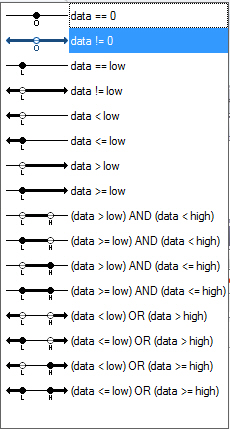

ClosedActiveWhen

Range Setting

Set the discrete ranges in which animation will occur.

Dynamic Behavior

AnimationMode

Analog or Discrete

Analog – The color of the object is determined by values coming from the data source.

Discrete – The start and stop of the object's changing color is determined by values coming from the data source.

StartPercent

Value 0 to 100

Controls the magnitude of the color change.

EndPercent

Value 0 to 100

Controls the magnitude of the color change.

TargetPropertyName

Fill or Line

The property that changes color.

TargetPropertyIndex

Value

Change the index for the list of colors that define a gradient color.

UseStartColor

True or False

Allows the use of the first color.

StartColor

Color Value

First color assignment.

UseEndColor

True or False

Allows the use of the second color.

EndColor

Color Value

Second color assignment.

DeepColorChange

True or False

Overrides any color assignment that is inherited by the object from its parent container.

Dynamic Behavior - Detents (Analog AnimationMode only)

DetentType

None, Number of Detents, Delta Value

Detents are the number of steps of animation of an object can have.

DetentValue

Number

The number of increments/decrements used in the animation. Use a higher number for smoother animation.

DetentOrigin

Value

The starting analog value from which subsequent steps are calculated.

Dynamic Behavior - Discrete (Discrete AnimationMode only)

StartDelay

Value

A delay time before the activated animation will begin (milliseconds). Can be assigned to a data source.

Duration

Value

The time it takes for an animation to complete a cycle (milliseconds). Can be assigned to a data source.

SkipInitialDuration

True/False

Set to True if the Duration should be skipped for the first data update.

AccelerationRatio

Percentage

The percentage of the animation's Duration spent accelerating over time.

DecelerationRatio

Percentage

The percentage of the animation's Duration spent decelerating over time.

AnimateWhenTrue

True/False

Run the animation when the data source returns a value that evaluates to True or 1.

ReverseAnimateWhenFalse

True/False

Run the animation in reverse when the data source returns a value that evaluates to True or 1.

AutoReverse

True/False

Runs the automation to the end and then runs the automation backwards creating an infinite loop.

RepeatCount

Number

The number of times an animation is performed for a discrete mode. For an infinite number of times set the number to -1.

FillBehavior

HoldEnd/Stop

Sets the behavior of the animation at the end of its motion.

FreezeWhenNotAnimating

True/False

True - stays in current state when animation is stopped

False - returns to the default state when animation is stopped.

Flash (Discrete AnimationMode Only)

FlashRate

Value

Time interval (milliseconds) between flash state changes. May be assigned to a data source.

DynamicWhenNotFlashing

True/False

Indicates that when this dynamic is not flashing that the object will be the dynamic color.

ToolTip

ShowToolTip

True/False

Indicates whether or not to display the tooltip for the dynamic.

ShowDescription

Default/True/False

Indicates whether or not to display the Description for the dynamic.

ShowDataSourceName

Default/True/False

Indicates whether or not to display the SourceName for the dynamic.

ShowDataSourceValue

Default/True/False

Indicates whether or not to display the DataSourceValue for the dynamic.

ShowErrorInformation

Default/True/False

Indicates whether or not to display the ErrorInformationfor the dynamic.

For more information, refer to Object Properties.
