Check Offset Details
You can identify the devices that may be overwritten during reading using CPU buffer memory expansion . The target devices are determined by the equipment and multiple CPU input offsets, allowing you to verify if are any issues with the settings.

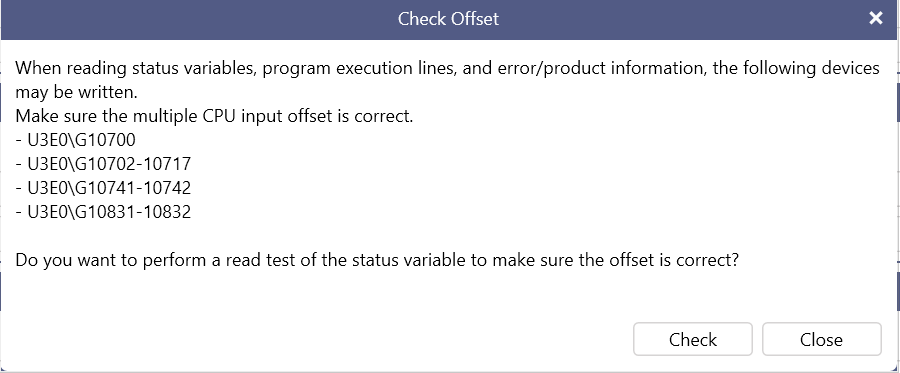

Check Multiple CPU input offset Dialog (R16RT)

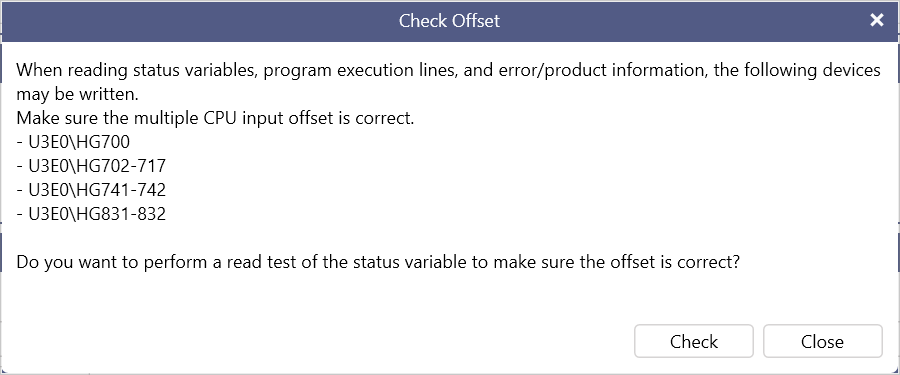

Check Multiple CPU input offset Dialog (Q172DSR)
Check Offset
-
List of Write Devices – Display devices using multiple CPU input offset settings. Click the "Check" button to perform a read test for CPU buffer memory expansion.
