Commands for Use by Buttons, Pick Actions, and Function Keys

You can create buttons and Pick actions in your GraphWorX displays that can execute certain commands based on user mouse clicks. Likewise, you can set function keys so that users can press keyboard keys to perform those same commands in a GraphWorX display. You do this by configuring the command that the Pick action, button, or function key will execute. For more information on these topics, refer to Pick Actions, Buttons, and Key Actions.

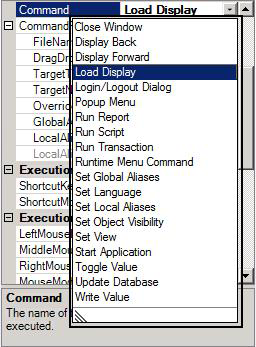

This topic describes the options that are available in the Command property when you configure a Pick action. When you select a ClosedCommand property, the CommandParameters change. CommandProperties control the command. All other properties for the Pick action are described in Properties for the Pick Action Dynamic.)

Local Commands

Click HERE for a list of Local Commands.

Global Commands

Click HERE for a list of Global Commands.
