Creating a Cloned List from Assets

This example of how to use the clone dynamic generates a list of asset equipment names from the default sample Asset configuration. The example starts by modifying the configuration from the previous example.

Create a Cloned List

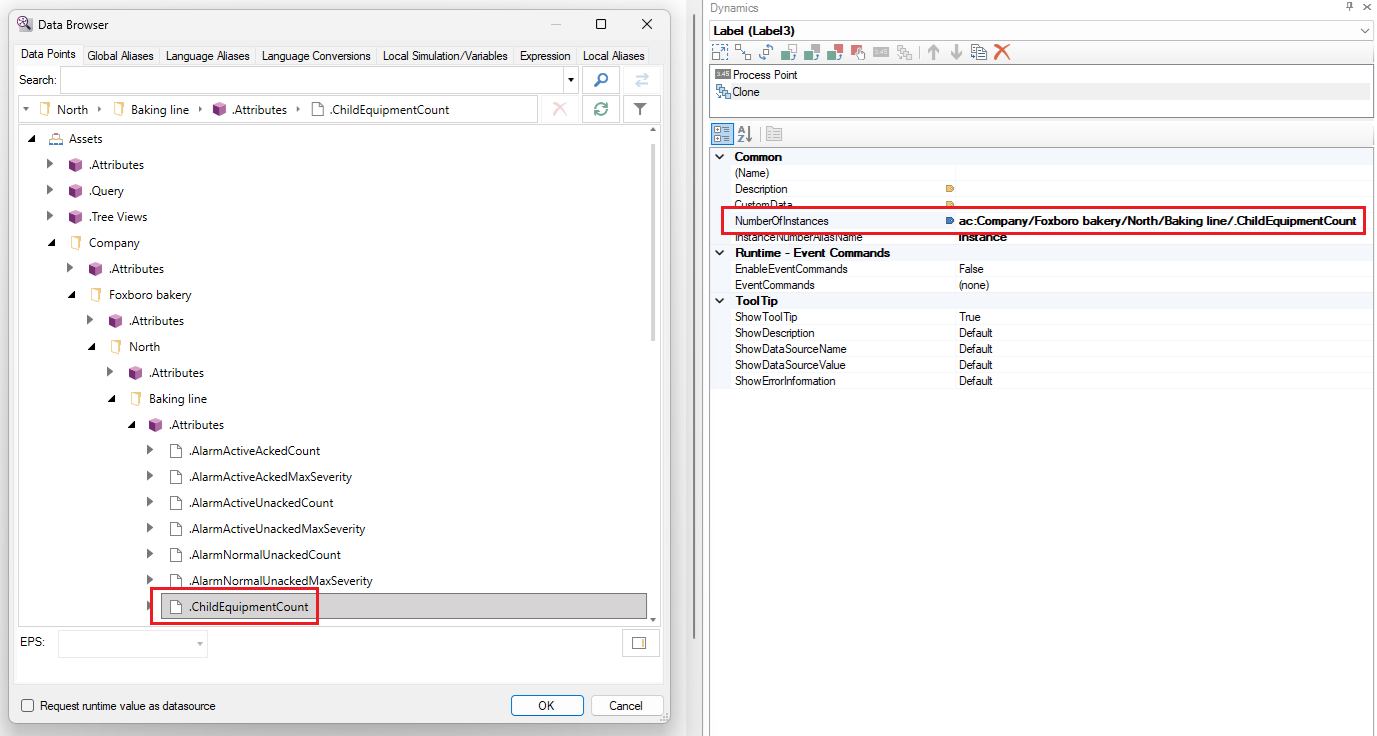

1. Select the clone dynamic and change the NumberOfInstances to: ac:Company/Foxboro bakery/North/Baking line/.ChildEquipmentCount

   • You can use the "..." button to browse for this data source.



2. Select the process point dynamic and change the DataSource to: valueof:x=getat({{ac:Company/Foxboro bakery/North/Baking line/.ChildEquipmentPointNames}}, <<instance>>) + ".DisplayName"

   • This expression gets the value of the DisplayName property of the child asset corresponding to the cloned instance.

3. Go to runtime mode and the list of asset equipment names is shown.
