Simulator Textual Variables

For simulator points, in place of a signal name you can use one of the names in the table below. The value of these tags cycles through a list of strings.

Name	Description
colors	Colors, such as Cyan, Yellow, Green, etc.
months	Months of the year, such as January, February, etc.
numerals	Text representation of the digits 0-9, such as Zero, One, Two, etc.
weekdays	Days of the week, such as Monday, Tuesday, etc.

These tags support the period-and-offset parameter, described in Simulator Signals. This determines how fast the value changes. For example:

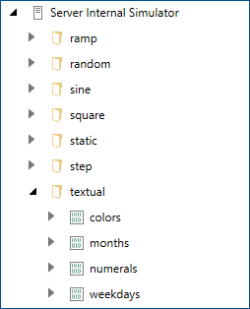

You can type the tag name manually or browse to them in textual folder. See example
