Supported Mitsubishi Electric Devices
GENESIS is tightly integrated with a number of Mitsubishi Electric Factory Automation devices. These devices include PLCs (MELSEC), HMIs (GOT), frequency inverters (FREQROL) and industrial robots (MELFA), and they can be configured in Workbench through the Mitsubishi Electric FA component.
MELSEC PLCs
The following table lists the compatible PLC CPUs.
|
CPU Series |
Allow GX Works3 Simulation |
Models |
|---|---|---|
|
RCPU |
Yes |
R00, R01, R02, R04, R08, R16, R32, R120, R04EN, R08EN, R16EN, R32EN, R120EN, R08P, R16P, R32P, R120P, R08PSF, R16PSF, R32PSF, R120PSF |
|
RSafety |
Yes |
R08SF, R16SF, R32SF, R120SF |
|
LHCPU |
Yes |
L04H, L08H, L16H |
|
FX5CPU |
Yes |
FX5U / FX5UC, FX5UJ, FX5S |
|
QCPU |
Yes |
Q00UJ, Q00U, Q01U, Q02U, Q03UD, Q03UDE, Q03UDV, Q04UDH, Q04UDEH, Q04UDV, Q04UDPV, Q06UDH, Q06UDEH, Q06UDV, Q06UDPV, Q10UDH, Q10UDEH, Q12PRH, Q13UDH, Q13UDEH, Q13UDV, Q13UDPV, Q20UDH, Q20UDEH, Q25PRH, Q26UDH, Q26UDEH, Q26UDV, Q26UDPV, Q50UDEH, Q100UDEH |
|
LCPU |
Yes |
L02S / L02S-P, L02 / L02-P, L06 / L06-P, L26 / L26-P, L26-BT / L26-PBT |
|
FXCPU |
Yes |
FX3S, FX3G / FX3GC, FX3U / FX3UC / FX3UC-32MT-LT-2 |
|
QSCPU |
No |
QS001 |

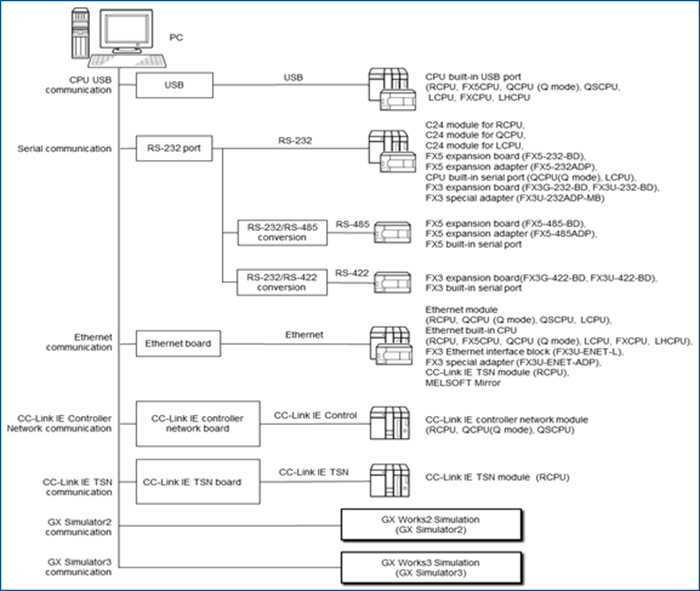

In companion with the PLC CPUs, MELSEC PLCs can pair with additional modules and adapters. These modules and adapters can add support for one or more of the following protocols: USB, RS-232, RS-422, RS-485, Ethernet, and CC-Link. These protocols are used to program them, deploying different configurations. This is usually used to add new capabilities to a PLC.
The table below lists the compatible PLC modules and adapters.
|
Module Types |
Models |
|---|---|
|
C24 module for RCPU |
RJ71C24, RJ71C24-R2, RJ71C24-R4 |
|
C24 module for QCPU |
QJ71C24N, QJ71C24N-R2, QJ71C24N-R4 |
|
C24 module for LCPU |
LJ71C24, LJ71C24-R2 |
|
Ethernet module |
RJ71E71, QJ71E71-100, LJ71E71-100 |
|
CC-Link IE Controller Network module |
RJ71GP21(S)-SX, QJ71GP21-SX, QJ71GP21S-SX |
|
CC-Link IE TSN module |
RJ71GN11-T2 (Used as an Ethernet port) |
|
FX5 expansion board |
FX5-232-BD, FX5-485-BD (Only FX5U and FX5UJ can be installed) |
|
FX5 expansion adapter |
FX5-232ADP, FX5-485ADP |
|
FX3 expansion board |
FX3G-232-BD, FX3U-232-BD, FX3G-422-BD, FX3U-422-BD |
|
FX3 special adapter |
FX3U-232-ADP-MB, FX3U-485ADP-MB, FX3U-ENET-ADP |
|
FX3 Ethernet interface block |
FX3U-ENET-L |
GOT HMIs
The following table lists the compatible HMI panels.
|
Module Types |
Models |
|---|---|
|
GT27 |
GT2715-XTBA, GT2715-XTBD, GT2712-STBA, GT2712-STWA, GT2712-STBD, GT2712-STWD, GT2710-STBA, GT2710-STBD, GT2708-STBA, GT2708-STBD, GT2710-VTBA, GT2710-VTWA, GT2710-VTBD, GT2710-VTWD, GT2708-VTBA, GT2708-VTBD, GT2705-VTBD |
|
GT25 |
GT2512-STBA, GT2512-STBD, GT2512F-STNA, GT2512F-STND, GT2510-VTBA, GT2510-VTWA, GT2510-VTBD, GT2510-VTWD, GT2510F-VTNA, GT2510F-VTND, GT2508-VTBA, GT2508-VTWA, GT2508-VTBD, GT2508-VTWD, GT2508F-VTNA, GT2508F-VTND, GT2505-VTBD, GT2506HS-V, GT2506HS-VTBD, GT2505HS-V, GT2505HS-VTBD |
|
GT25 Wide |
GT2512-WXTBD, GT2512-WXTSD, GT2510-WXTBD, GT2510-WXTSD, GT2507-WTBD, GT2507-WTSD, GT2507T-WTSD |
|
GT SoftGOT2000 |
GT SoftGOT2000 |
The following table lists the GOT2000 communication unit and module that can be used with GENESIS.
|
Module Type |
Model |
|---|---|
|
Ethernet Unit |
GT25-J71E71-100 |
FREQROL Frequency Inverters
The following table lists the compatible frequency inverters.
|
Inverter Series |
Models |
|---|---|
|
FR-A |
FR-A800-E, FR-E800-E, FR-F800-E |
MELFA Industrial Robots
The following table lists the compatible industrial robots.
|
Controller Series |
Models |
|---|---|
|
RV-FR |
CR800-D, R16RT, Q172DSR |
Network Interface Board
The following table lists the compatible network interface boards.
|
Network Interface Board |
Models |
|---|---|
|
Controller Network Interface Board (CC-Link IE Control) |
Q80BD-J71GP21-SX, Q80BD-J71GP21S-SX, Q81BD-J71GP21-SX, Q81BD-J71GP21S-SX |
|
Field Network Interface Board (CC-Link IE Field) |
Q80BD-J71GF11-T2, Q81BD-J71GF11-T2 |
|
TSN Network Interface Board (CC-Link IE TSN) |
NZ81GN11-SX, NZ81GN11-T2 |
Glossary
The following table describes terms that are used in the Mitsubishi Electric FA documentation.
|
Term |
Definition |
|---|---|
|
FREQROL |
Mitsubishi Electric series of variable frequency inverters |
|
GOT |
A graphic operation terminal is a Mitsubishi Electric series of HMI. |
|
HMI |
A human machine interface is any kind of device that provides a user interface. |
|
MELFA |
Mitsubishi Electric series of industrial robots |
|
MELSEC |
Mitsubishi Electric series of PLCs |
|
Mitsubishi Electric FA |
Mitsubishi Electric Factory Automation |
|
PLC |
A programmable logic controller is a kind of industrial computer specialized in input/output interacting with sensors and actuators in industrial plants. |
|
Variable frequency inverter |
An electric device that converts current from AC to DC and vice versa. |
