Network Interface Board System Configuration

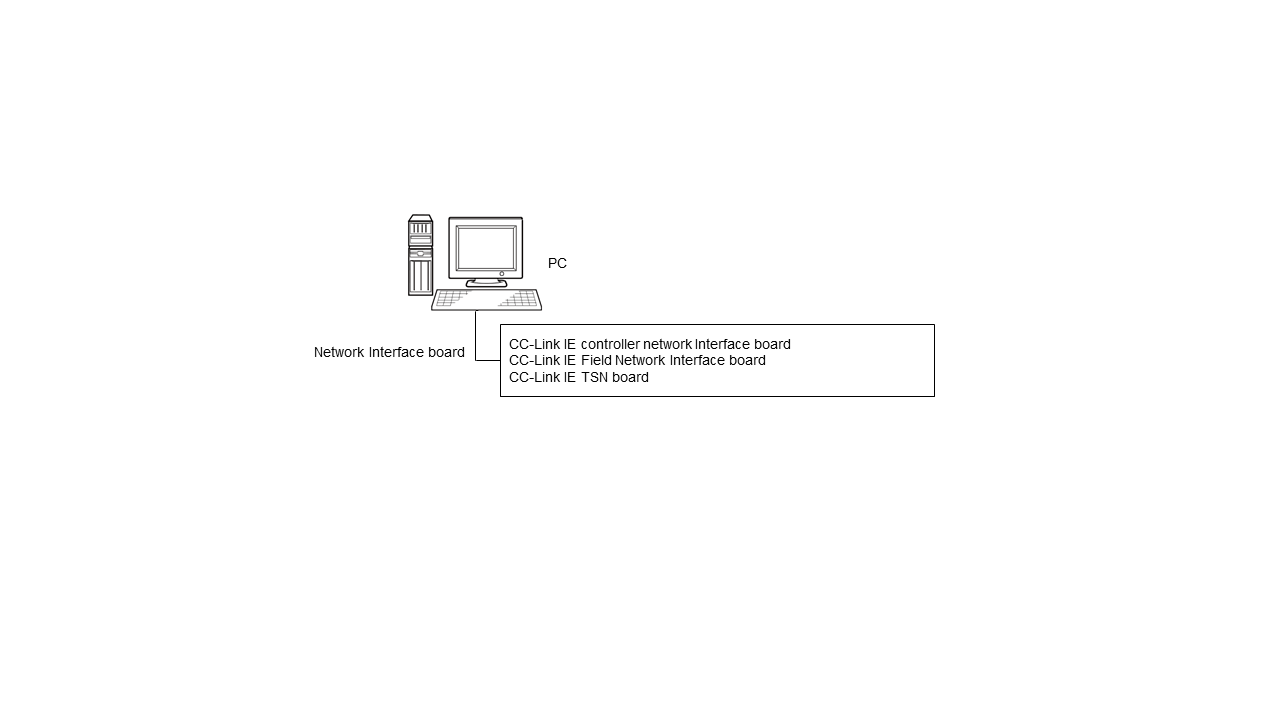

The system configuration when using Network Interface Board is shown for each communication protocol. For details on the cables used, refer to the manuals for each Mitsubishi Electric product.
System Configuration
System Configuration Details
|
Communication Method with a Personal Computer |
Connection Method |
Connected Device |
|---|---|---|
|
Network Interface board |
CC-Link IE Controller Network Interface board |
CC-Link IE Controller Network Interface board (Q80BD-J71GP21-SX, Q80BD-J71GP21S-SX, Q81BD-J71GP21-SX, Q81BD-J71GP21S-SX) |
|
CC-Link IE Field Network Interface board |
CC-Link IE Field Network Interface board (Q80BD-J71GF11-T2, Q81BD-J71GF11-T2) |
|
|
CC-Link IE TSN Interface board |
CC-Link IE TSN Interface board (NZ81GN11-SX, NZ81GN11-T2) |
