Viewing BACnet Statistics

To display the statistics, you must enable it in the channel settings. Learn how

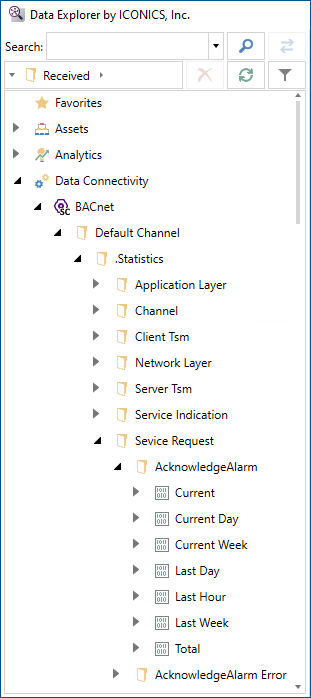

Once enabled, you can view the statistics in the Data Browser in Workbench or GraphWorX™ or in the Data Explorer stand-alone tool. The data is stored as individual statistic points in a .Statistics folder under the channel node.

To view the statistics in the Data Browser:

  1. Open Workbench. By default, the Data Browser is placed in the right pane.

    You may need to switch the tabs at the bottom of the pane. If needed, you can change the layout or display multiple Data Browsers on the Tools ribbon.

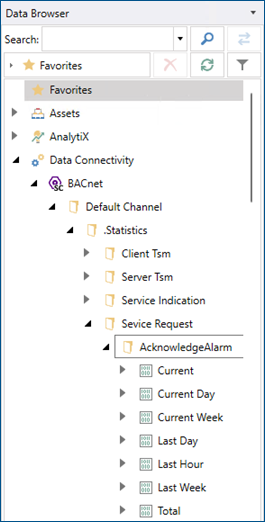

  2. In the Data Browser, expand Data Connectivity > BACnet, and then expand the desired channel.

  3. Expand the .Statistics folder and navigate to the desired statistic point.

  4. Double-click the statistic point to display the values in the main pane.

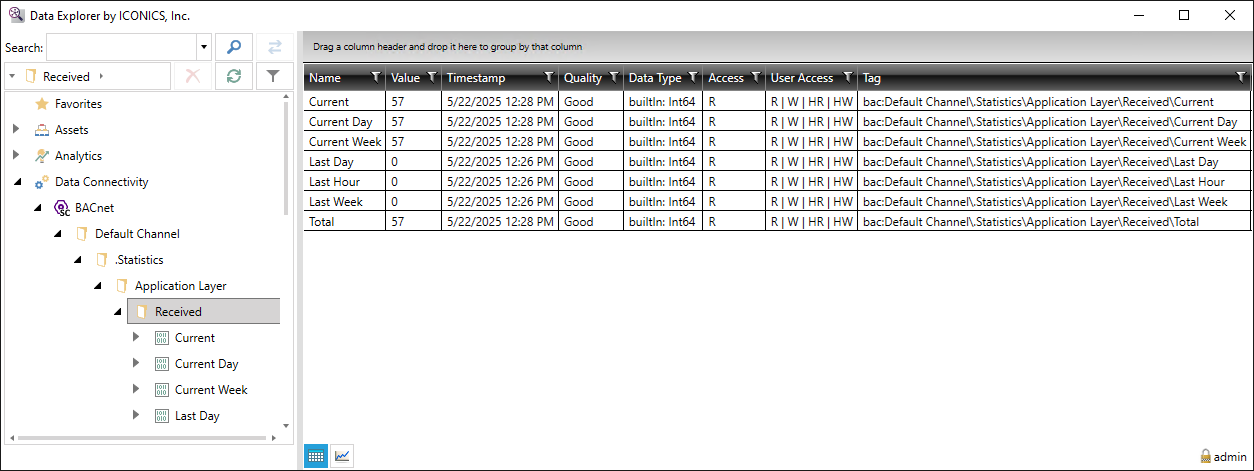

  5. Use the and icons at the bottom left to switch between a grid view with the details about individual statistics data points and a graphic trend view.
