Visualizing AUTOSOL ACM Assets in GraphWorX

Assets created in GENESIS through AUTOSOL ACM import are standard Assets, and you can interact with and use them as needed through GraphWorX.



Using standard GraphWorX displays to view AUTOSOL ACM Asset data

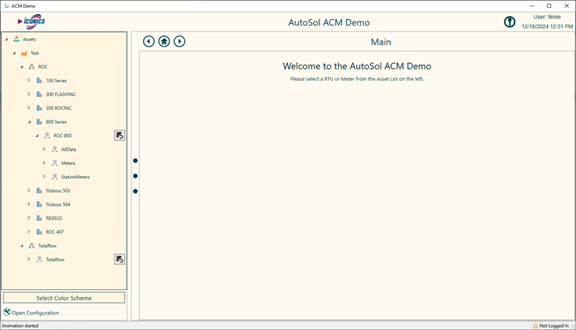

1. Open GraphWorX and load the GDFX file C:\ProgramData\ICONICS\11\PubDisplay\ACM\acmMain.gdfx. This will provide you with a pre-configured ACM panel. This display can be run as a desktop runtime or web browser session. The panel below shall be displayed in both cases.

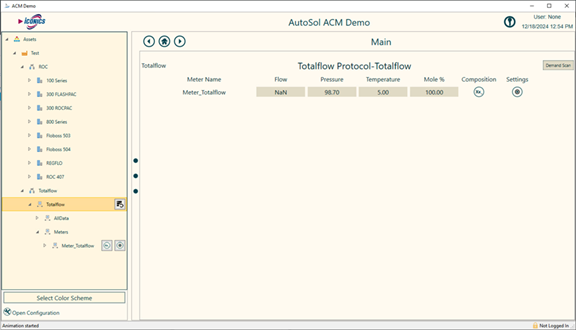

2. You can browse your devices by navigating the left tree panel. When you expand the details of an element in the tree, it will provide you with a list of meters related to the selected Remote Terminal Unit (RTU).

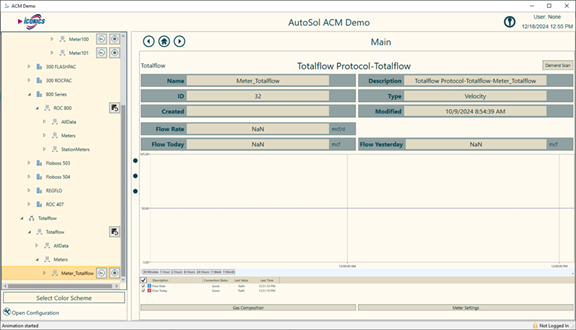

3. For this guide, the Totalflow meter was selected and a number of metrics are displayed.
