Viewing the MELFA Faceplate

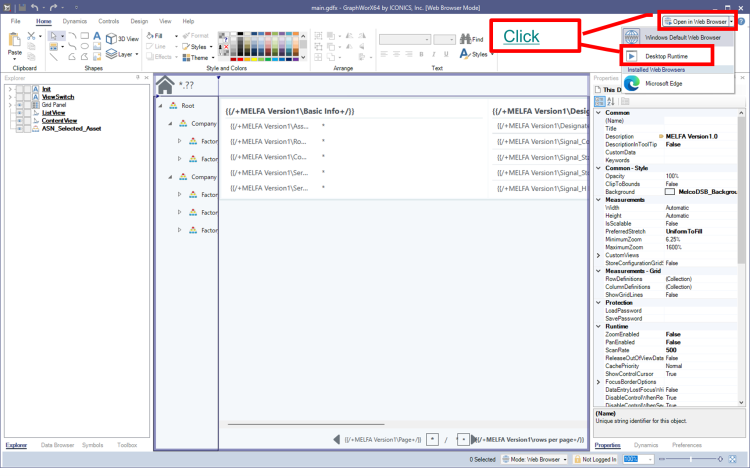

1. Open main.gdfx in the MELFA folder and go into runtime:

   • To use this display in GraphWorX™ runtime, select Desktop Runtime.
   • To use this display in WebHMI, select Open in Web Browser.

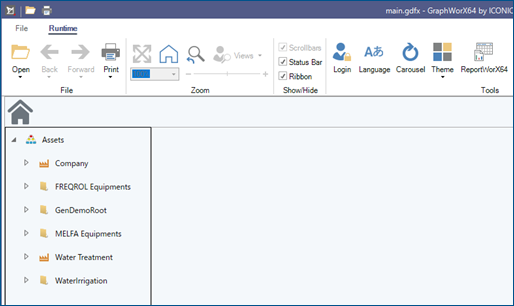

   The following image is an example of the main display in GraphWorX runtime.

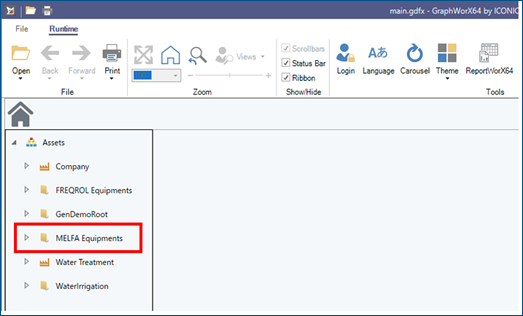

2. In the tree on the left, select the folder that contains your generated equipment.

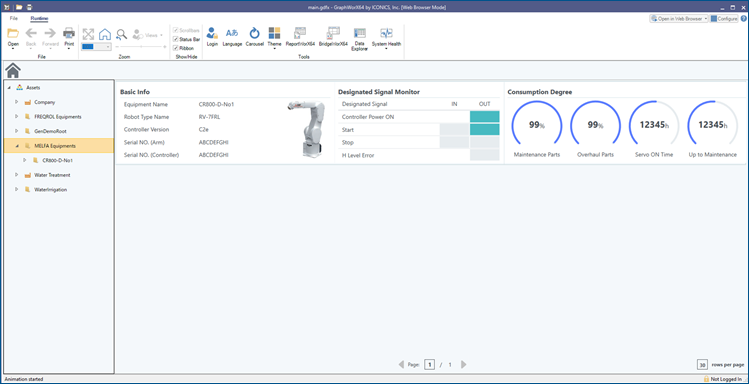

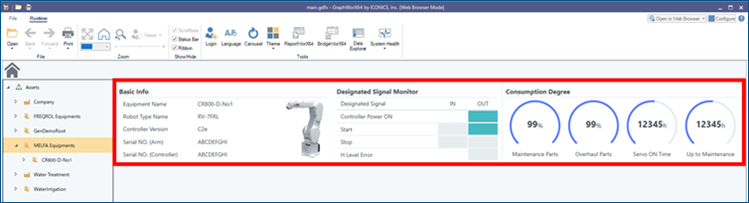

3. The list screen is displayed.



4. Select a faceplate from the list to display the details of that equipment.

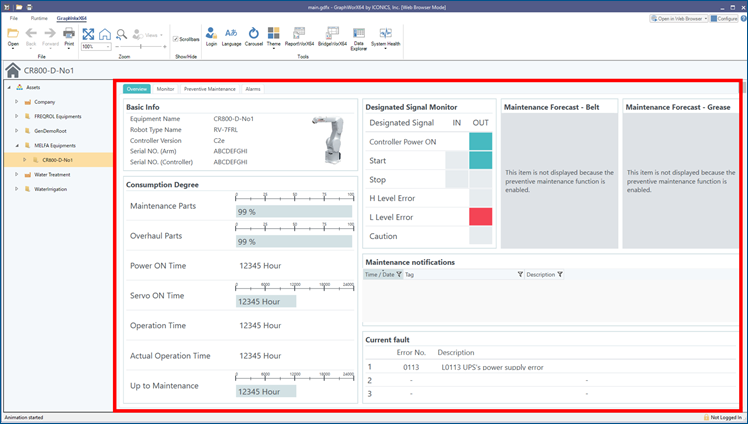

   This image is an example of the details display.
