FREQROL Template Version 1 Asset Builder Settings

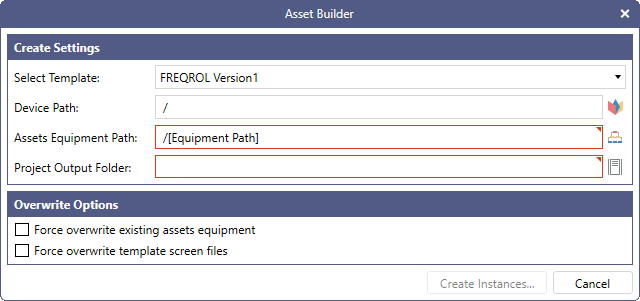

The following table describes the Asset Builder settings.
|
No. |
Item Name |
Setting Description |
|
|---|---|---|---|
|
|
Create Settings |
|
|
|
1. |
|
Select Template |
Select FREQROL Template Version 1. |
|
2. |
|
Device Path |
Enter the Mitsubishi Electric FA FREQROL device to use as a data source. You can also select a device group that includes the FREQROL device. |
|
3. |
|
Assets Equipment Path |
Specify the Assets folder where the equipment will be created. Example: /FREQROL Equipment |
|
4. |
|
Project Output Folder |
Specify the folder where the display files for monitoring the equipment will be created. |
|
|
Overwrite Options |
|
|
|
5. |
|
Force overwrite existing assets equipment |
When selected, Asset Builder will overwrite any equipment that has the same name and folder as the equipment that it's trying to create. |
|
6. |
|
Force overwrite template screen files |
When selected, Asset Builder will overwrite any display files that have the same name and folder as the files that it's trying to create. |
|
7. |
Create Instances |
Runs the Asset Builder with the chosen settings, creating equipment and displays. |
|
|
8. |
Cancel |
Discards the settings and exits Asset Builder without making any changes. |
|
