Configuring Data Export System Settings

This topic describes configuring data export system settings in the Alarm Historian configuration.

To configure data export system settings:

1. Open Workbench and in the Project Explorer pane, expand your project > Alarms and Notifications > Alarm Historian > Product Configuration.

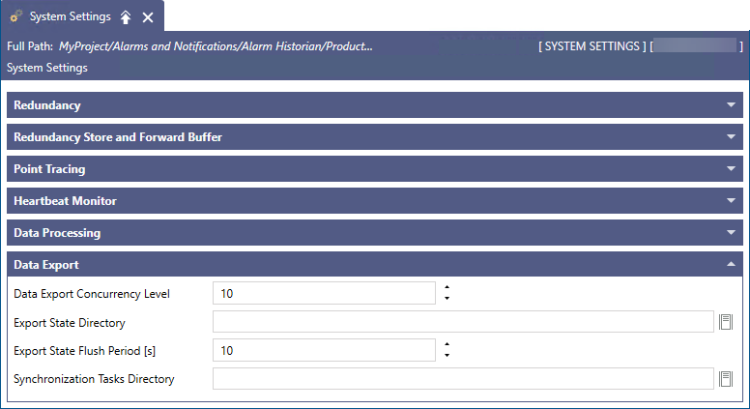

2. Double-click System Settings to open the Alarm Historian configuration and navigate to the Data Export section.



3. Set up the following options as needed, and then click Apply.

   • Data Export Concurrency Level: Maximum number of export tasks that can run at the same time.
   • Export State Directory: A local disk folder where you create the storage file.
   • Export State Flush Period [s]: The period for which the logger stores modified export states.
   • Synchronization Tasks Directory: The directory with text files describing data resynchronization.
