Energy AnalytiX Quick Start

The following provides a quick start guide to understanding and deploying Energy AnalytiX.

Familiarity with and knowledge of your energy-related assets and equipment, such as meters, devices, and logical areas for which you would like to analyze energy usage is required.

Introduction

This topic introduces the basic concepts of Energy AnalytiX along with a checklist of the steps for getting started with Energy AnalytiX from a configuration and runtime operations standpoint. Note that much of Energy AnalytiX's configuration happens in the AssetWorX provider, so you will be using a combination of both Energy AnalytiX and AssetWorX providers in Workbench to configure your energy information. It is important that you realize that deployment of Energy AnalytiX requires considerable planning, and as such should involve all of the key stakeholders that are part of your energy management initiative.

NOTE: This application note is intended to be a quick start guide primarily for planning purposes and to give you an understanding of the recommended sequence of steps for efficiently deploying your Energy AnalytiX application. For more details about any step mentioned herein please consult the help documentation as well as other available application notes.

Before You Begin

The following steps should be completed before proceeding with the rest of this quick start guide:

  • An AssetWorX configuration database, which hosts all asset related and also Energy AnalytiX related information, must be in place and must be activated.

  • Energy AnalytiX must be installed to your AssetWorX configuration database. It can be installed via the AssetWorX provider's Installed Extensions node. For more information, refer to the “Installed Extensions Node” Help topic for AssetWorX.

  • Plan the asset tree with your energy-related needs for Energy AnalytiX in mind. Refer to the “Strategies for Building the Asset Tree” Help topic for AssetWorX.

NOTE:  The deployment of Energy AnalytiX also requires AssetWorX, Asset AnalytiX, Actions (Triggers), and Hyper Historian to be created on the same configuration database.

NOTE:  Both Energy AnalytiX and AssetWorX appear as providers in the Project Explorer area of Workbench, as shown below.

Energy AnalytiX Provider in Workbench

Creating an AssetWorX Database with Energy AnalytiX Extension

First, you will need to create an AssetWorX database with Energy AnalytiX extension and related providers enabled. Please note that the database will be used both for configuration as well as runtime data for the Energy AnalytiX application. You can accomplish this task using the Workbench Desktop. Once you launch the Workbench desktop, you can use the ProjectWorX menu to configure an AssetWorX database with Energy AnalytiX extension

Creating an Energy AnalytiX Database in Workbench

You will need to make sure that the Energy Analytix extension is enabled. For Energy AnalytiX to function properly the following configurations and applications need to reside on the same configuration database:

  • Assets

  • Asset AnalytiX

  • Hyper Historian

  • Energy AnalytiX

  • Triggers, AnalytiX-BI (optional)

Enabling Energy AnalytiX Extension in Workbench

Finally, you will need to create a project which utilizes the new created database.

Creating an Energy AnalytiX Project in Workbench

You will need to make sure that both the AssetWorX provider as well as Energy AnalytiX provider reference the same database in your newly created project.

Configuring an Energy AnalytiX Project in Workbench

Once your Energy AnalytiX project is created, you can make it Active in order to run the newly created configuration.

How Energy AnalytiX Works

Energy AnalytiX is an analytics data-driven application for Energy Management. It operates on collecting data from various data sources such as real time, historical, WEB services based and external data and then utilizes the collected data into evaluating user defined energy calculations.

Energy AnalytiX classifies the collected data by functionality such as:

·         Meter data

·         Weather data

·         Cost data

·         Energy Variables

·         Energy calculations

Internally, it creates interval-based data both for meter summaries as well as energy calculations for key periods such as

·         Base Summary Interval (typically every 15, 20, or 30 minutes)

The above interval defines the output energy data resolution such as energy consumption.

In addition, Energy AnalytiX utilizes energy variables to produce rich energy related analytical data which can be easily displayed in energy dashboards and GENESIS64 clients as well as third-party analytical tools such as Power BI.

In order to facilitate advanced analytical capabilities, Energy AnalytiX utilizes several key concepts at the Energy AnalytiX provider.

Energy AnalytiX Application Settings in Workbench

Overview of Energy AnalytiX

Energy AnalytiX Internals

Energy AnalytiX Key Concepts

The key concepts provide rich analytics results and allow Energy AnalytiX to support advanced data viewing and analytics features, such as Asset based, time based, and custom drilldown views. In summary, the key concepts are:

AssetWorX Asset Tree

The AssetWorX asset tree is utilized to add the Energy AnalytiX extension to user created assets (AssetWorX equipment). User can click on the ‘+’ to add the Energy AnalytiX extension. There could be two types of Energy related asset configurations:

·         Energy Asset

o   AssetWorX equipment such as building, room, manufacturing cell etc. that has the Energy AnalytiX plugin could be an Energy Asset.

o   An Energy Asset aggregates and rolls up consumption data from meters or other Energy Assets that fall below its hierarchy.

·         Energy Meter

o   Such as electric, water, gas etc. meters

o   Every energy meter is associated with an energy source.

Energy AnalytiX Assets in Workbench

Meter Types

Meter types are utilized to analyze energy data by type of energy source. They are quite flexible to define custom units, and they can also be used for non-energy source related counts such as production counts, plug load association etc. Meter types can also be used to support energy source segmentation, by defining appropriate meter types such as those shown in the figure below.

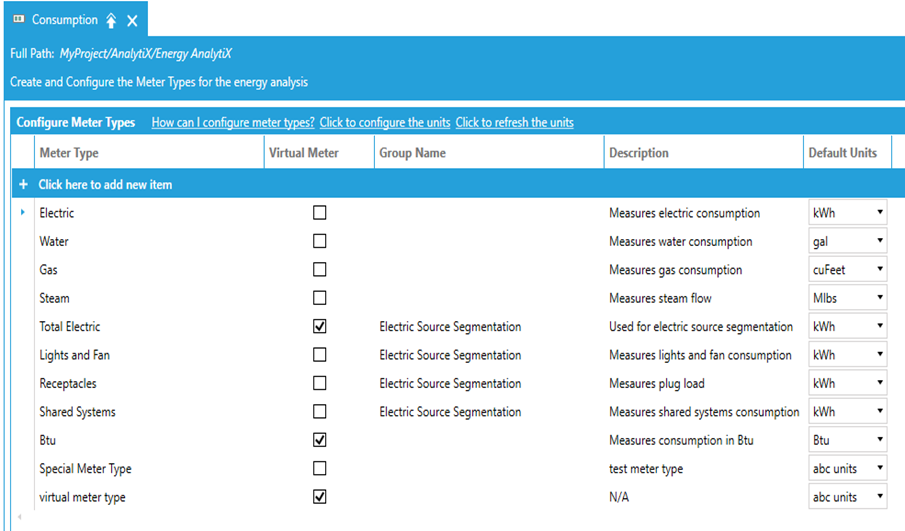

Energy AnalytiX Meter Types in Workbench

Runtime Energy charts and reports utilize the meter types to drilldown to specific energy source related data. Meter Types can be defined under the Energy AnalytiX > Consumption configuration. There are two options for Meter Types:

Non-Virtual

·         Typically utilized in simple energy applications for energy consumption analysis based on single energy source (electric, gas, water, steam, etc.).

·         Energy calculations related to this option of meter types are configured only for variables associated with the specific meter type.

Virtual

·         Typically utilized in advanced energy applications to configure complex energy calculations on the asset that include consumption variables from multiple other meter types.

·         The user can configure energy unit conversions for the virtual meters.

Cost Centers

They are used for cost allocation, such as organizational areas or tenants and for estimating the cost of energy. They can also be used to filter logically areas of energy reporting and to quickly identify possibilities for further improvements.

Energy AnalytiX Cost Centers in Workbench

Energy Variables

Energy variables are used as calculation variables in defining energy calculations expressions, such as energy consumption normalized by square footage. They can be static or time varying.

Energy AnalytiX General Energy Variables in Workbench

There is also a special category of “internal” energy variables, which cannot be edited by users. The “internal” energy variables are used transparently by the Energy AnalytiX runtime to provide support certain standard energy calculations.

Energy AnalytiX Internal Energy Variables in Workbench

Calculations Categories and Calculations Library

Energy AnalytiX supports several types of energy calculations, namely standard, derived, carbon, and cost calculations. These can be found on the Energy Asset’s configuration on the equipment.

·         Standard consumption calculations are based on meter data variables and oftentimes are associated with energy consumption at the Energy Asset level such as Building, Floor, etc.

·         Derived calculations are based on standard calculation data variables and energy variables values. They are used for normalized consumption values, defining custom cost calculations or any other custom calculation the end user would like to define.

·         Carbon calculations are a special category of derived calculations targeting carbon emissions.

·         Cost calculations require no configuration, and they are built-in the runtime. The user only needs to enable them.

Energy AnalytiX Calculations in Workbench

The calculations library under the Energy AnalytiX provider has a set of Standard calculations and a few predefined derived energy calculation templates. The user can define their own custom calculation templates if needed. The calculation library enables re-using energy calculations on multiple Energy Assets with ease.

Energy AnalytiX Calculation Library in Workbench

Calculation categories are used to categorize energy calculations data in groups, so that the runtime charts and reports can produce meaningful visualization and reporting results. They are also used in runtime filtering operations.

Energy AnalytiX Calculation Categories in Workbench

When adding the expression for Energy consumption calculations on the energy asset the list of calculations is auto populated with the following considerations for meter type group name and meter types:

When meter type of calculation is NOT defined as a virtual meter type...

·         If there is no meter type group defined, only meter consumption tags for which their meter types match the meter type of the calculation will be considered.

·         If there is a meter type group defined, only meter consumption tags for which their meter type group name matches the group name meter type of the calculation will be considered.

When meter type of calculation IS a virtual meter type...

·         If there is no meter type group defined, all meter consumption tags for any meter type will be considered.

·         If there is a meter type group defined, all meter consumption tags for any meter type will be considered for which their meter type group name matches the meter type group name of the calculation.

When a virtual meter type is defined, the user can configure energy unit conversions or implement complex energy calculations for a variety of purposes.

Add Calculation from Template to Energy Asset

Energy Star

Energy AnalytiX allows the end user to associate energy meters with Energy Star reporting. The end goal is to fill in an approved Energy Start reporting template for manual submission to the Energy Star Portfolio Manager.

Energy AnalytiX Energy Star Reporting in Workbench

Energy AnalytiX also installs a number of approved Energy Star templates, typically found under:

C:\Program Files\ICONICS\GENESIS64\Components\Templates\Energy Star\Report Templates

Energy AnalytiX Energy Star Report Templates in Workbench

In addition, the end user can enable periodic (daily) extracts of Energy Star formatted energy data to the AssetWorX Microsoft SQL database by configuring ReportWorX Express.

Energy AnalytiX Energy Star Periodic Data Extracts in Workbench

Periodic Triggers

The periodic triggers are utilized to trigger data retrieval from Hyper Historian for Energy Star data extracts. Currently, only a predefined trigger (ESDaily) is supported. In the future, more data extract tasks will be supported, which will require the use of such periodic triggers.

Energy AnalytiX Triggers in Workbench

Equipment Classes

They are a special kind of assets (equipment) which have parameterized configuration parameters. They can be utilized to rapidly configure an Energy AnalytiX application. When the user creates an AssetWorX database in the Workbench that includes the Energy AnalytiX extension, several pre-built equipment classes are added to facilitate common energy analysis scenarios.

Note: GENESIS64 Basic SCADA does not include support for equipment classes. Users who install Energy AnalytiX with GENESIS64 Basic SCADA will not be able to utilize the equipment classes described in this section. The asset structures will have to be created individually for each instance.

Energy AnalytiX Equipment Classes in Workbench

We have added a number of equipment classes to help accelerating Energy AnalytiX deployment. The related equipment classes refer to simple or advanced building, with fixed or variable meter count, energy segmentation support etc.

A few key points:

  • Energy AnalytiX has built-in support to roll up energy calculations from children to parent Energy Assets

  • Most rollups apply to higher level assets, such as Building, Floors, etc.

  • In equipment classes with variable meter count, the consumption calculations are x={{meter:*.*}} to facilitate automatic rollups per meter tag and meter .

  • We have also defined equipment classes for Energy meters with fixed or variable meter counts

Sample Energy AnalytiX Equipment Classes in Workbench

The typical steps to utilize the Energy related equipment classes are:

·         Review all equipment classes included in the samples

·         Choose the most appropriate one that matches your setup

·         Duplicate it by copy/paste to edit them and make your own Energy equipment class

·         Modify asset bindings, calculations, aliases (if desired)

·         Set values for some asset bindings such as Gross Area and Occupancy

·         Modify Cost Center (If desired)- Review built-in Cost Centers and add new ones as needed

·         Modify temperature source (if desired)

·         Update equipment class parameter definitions

·         Instantiate assets of this class under desired equipment tree branch

Energy AnalytiX Configuration Sections in Workbench

There are two key parts in configuring an Energy AnalytiX application in Workbench:

·         Common application wide settings

o    They are majorly configured using the Energy AnalytiX provider section

o    Units for the assets are configured using the AssetWorX provider’s system properties settings.

o    Common settings are used by the overall application, and they are also used by and Energy AnalytiX extension enabled assets (equipment)

·         Energy Asset (equipment) settings

o    They are configured using the AssetWorX provider’s Energy AnalytiX extension forms

o    They utilize common application settings as well as other energy enabled asset (equipment) settings below its hierarchy.

Common Application Settings in AssetWorX Provider

Inside the AssetWorX provider, the user can configure units. These units are used extensively inside an Energy AnalytiX application for its analysis.

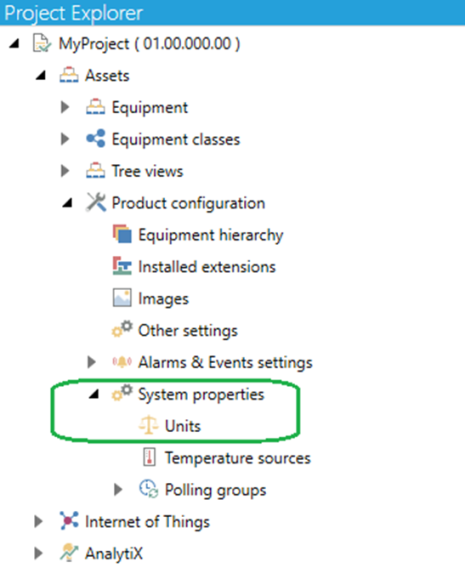

Common Application Settings - Units and Temperature Sources in Workbench

Energy AnalytiX is "unit agnostic” to provide a generalized framework for energy data analysis and advanced data visualization capabilities. As such, it provides a general framework for handling simple to advanced energy unit conversions. Refer to the “Energy Unit Conversions Support" Help topic for more information.

Common Application Settings in Energy AnalytiX Provider

Common energy application settings are found in Workbench under AnalytiX > Energy AnalytiX.

Energy AnalytiX Provider Forms in Workbench

They include the following:

  • General Options

    • High level application settings relating to data collection, data storage, data aggregates, and other settings

    • You can also configure data aggregates options, data storage options and default units.

  • Consumption

    • Configuration of Meter Types used in associating energy consumption data to energy sources

  • Costs

    • Cost center, tenant and energy cost settings

  • Energy Variables

    • Calculation variables like square footage, occupancy, CO2 coefficient, etc., used in derived energy calculations and report filters

  • Calculations Library

    • A unified place to define both energy calculation categories, such as consumption, carbon etc and to also create reusable advanced energy calculations

  • Meter Data Spikes Tool

    • Not required during initial setup. However, it can be used to repair abnormal meter data (spikes) at a later stage.

  • Degree Days Analysis

    • Not required during initial setup. However, it can be used to analyze weather effect on energy consumption

  • Energy Star

    • Not required during initial setup. However, it can be used to relate energy meters to Energy Star reporting elements

  • Triggers

    • Required for triggering periodically historical data exports users created during product installation are utilized

  • Monitor View

    • Unified diagnostics view for your Energy AnalytiX application

  •

Checklist for Deploying Energy AnalytiX

To configure Energy AnalytiX properly, you will need to follow these steps:

Configure the following properties in AssetWorX:

Units in AssetWorX

Configure the following Energy AnalytiX general options:

·          Configure General Options, including base summary interval for energy data, time interval to keep energy data in the AssetWorX MS SQL database and other. For more information, refer to the “General Options Node for Energy AnalytiX” Help topic.

·          You can also configure desired data aggregates, data storage options and default units

·          Use the Advanced Tab to perform administrative tasks on Hyper Historian.

Energy AnalytiX General Options

Configure information for performing energy-related calculations:

  • Configure energy variables that can be used for energy calculation or normalization under the Energy Variables folder in the Energy AnalytiX tree. For more information, refer to the “Energy Variables” Help topic.

  • Configure meter types using the Consumption folder in the Energy AnalytiX tree. For more information, refer to the “Adding Meter Types” Help topic.

  • Configure cost centers for monitoring energy costs within business units using the Cost Centers sub-tab within the Costs dialog. For more information, refer to the “Defining Cost Centers” Help topic.

  • Configure your energy-related calculations and calculation categories under Calculations Library folder in the Energy AnalytiX tree. Refer to the “Defining a Library of Calculation Templates” topic for more information.

Energy AnalytiX Calculations Categories

In AssetWorX, define your Energy AnalytiX assets within the asset tree.

The asset tree must include your energy assets and energy meters (under energy assets). For more information, refer to the “Configuring Energy AnalytiX Extensions” Help topic.

Here is a brief overview of the steps required in order to configure your Energy AnalytiX assets in the asset tree:

  • Define your Meters that measure your energy consumption, inputs, outputs, and loss for systems such as water flow or air flow. These meters can be real or virtual. For more information, refer to the “What is a Meter and How Is It Used?” topic. In summary, you will need to follow these steps:

    • Configure Your Meters

    • Specify Each Meter's Cost Center

  • Identify and enable Energy AnalytiX on the Energy Assets in your equipment tree. An energy asset is any equipment for which you want to collect and aggregate energy data. For more information, refer to the “What is an Energy Asset?” topic. In summary, you will need to follow these steps:

    • Identify Your Energy Assets

    • Specify if they are rollup or non-rollup assets

    • Define Each Energy Asset's Bindings

    • Specify Each Energy Asset's Cost Center and Energy Budget (optional)

    • Configure Calculations for Each Energy Asset

At this point, you should be ready to start up your Hyper Historian Loggerservice, Energy AnalytiX service, AssetWorX , AnalytiX-BI point manager and FrameWorXTriggers to begin collecting and analyzing data for your configured meters and energy assets.

Once the services are started, you can, of course, continue to add to your configuration and make runtime changes as your application needs evolve, but you should perform the above steps at a minimum for at least one branch of your asset tree so that you can verify the application is collecting the appropriate data and outputting the desired information.

Here are a few things to verify when you feel that you are ready to start collecting data with Energy AnalytiX:

  • You should first verify that the service settings for processing and data collection are appropriate for your application. For more information, refer to the “Setting Options for Processing and Data Collection” topic, on the Settings sub-tab in particular.

  • You may also want to review some tips and tricks related to optional optimizations that can be enabled or disabled via server-side configuration files. For more information, refer to the “Optimization” topic.

  • Once you have confirmed that the above settings are appropriate for your application, start up the related services either by clicking on the traffic light in the Workbench, or by launching “Services” from the Windows Control Panel, Administrative Tools, and start the related ICONICS services.

In the new Energy AnalytiX Architecture, where the core of the energy calculations is hosted inside Hyper Historian, the license for Energy AnalytiX will be validated inside the Hyper Historian service. When the Hyper Historian service starts, the energy management function library, which is hosted within the Hyper Historian service, will request the Energy AnalytiX license. If a valid license is available, then all the energy calculations will be processed normally. If a valid license is not available, appropriate trace messages will be logged to TraceWorX, under the Hyper Historian application, and the Hyper Historian service will stop processing the energy calculations. In TrendWorX64 Viewer, disconnected lines will be drawn from the last good value prior to detecting a license failure.

In addition, since all Energy AnalytiX variables and calculations are collected and data logged through Hyper Historian, the end user needs to verify that the license of the Hyper Historian tag count accommodates both the native Hyper Historian tags along with the Energy AnalytiX calculations and raw tag data collection and logging.

License Check:

Upon service startup, Energy AnalytiX will verify that you have an appropriate license for the product. You can check on this by opening up the MonitorWorX Viewer and clicking on the AnalytiX tab.

Energy AnalytiX Meter Assets in MonitorWorX Viewer

NOTE: Demo mode for Energy AnalytiX allows for up to 24 enabled Meters for 12 hours of runtime.

Diagnostics and Troubleshooting

To confirm that Energy AnalytiX is collecting data for your enabled energy assets and meters, you can easily utilize TrendWorX64 Viewer to quickly add a few historical tags from your energy assets to verify proper data collection.

All related services in Energy AnalytiX post diagnostic information to the Windows Event Viewer, and in general it is a good practice to check the Event Viewer when you are first starting up to ensure that there are no errors or warnings coming from the Energy AnalytiX-related services.

NOTE: If you do see any errors or warnings coming from your “IcoEaService” Event Source or other related ICONICS services, we strongly recommend that you turn on TraceWorX for Energy AnalytiX at the Warning level at minimum for more detailed diagnostic information.

You can also check your asset count and your application information that is being used in your project by going to the Energy AnalytiX provider in the Workbench and selecting “Monitor View”.

As shown below, you can click on the different tabs to get the count of all the assets, the database load information, etc.

Monitor View

Now you should be off and running with Energy AnalytiX! For more information on any section, refer to the referenced Help topic name, or search the product Help documentation.

See Also:

How Energy AnalytiX Works

Optimizing Performance
