General Tab (BACnet Calendar View)

The General Tab of the Schedule Control (from a BACnet Calendar View configuration) Runtime properties lets you set initial schedule information. You can edit information in the following tab sections:

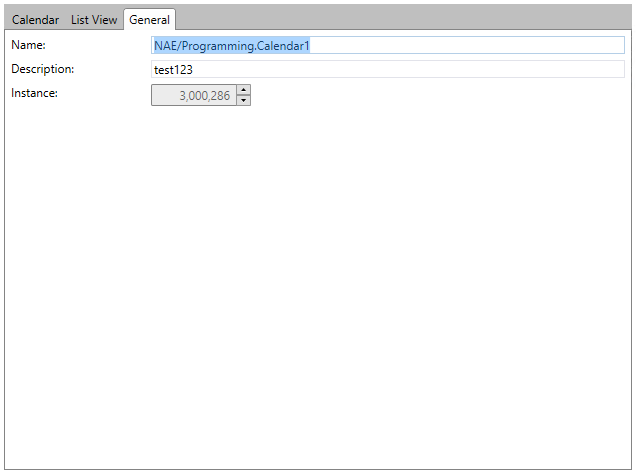

General Tab in the Schedule Control (from a BACnet Calendar View configuration) in GraphWorX64 Display Runtime

  • Enter a Name- if one hasn't been provided via loaded schedule data already.

  • Enter a Description by filling in the text entry field.

  • The Instancemay be pre-filled according to the selected BACnet Device's Calendar Instance from the BACnet Calendar View's Source tab. If not, enter one here.
